Alnico shallow pot Magnets also names Alnico pot magnet, Alnico countersunk pot magnet which made
from aluminum,cobalt,nickel with iron and other metals.They have a good performance in high temparature
operation and corrosion resistance which are ldeal for clamping and holding.The recommended max working
temparature for Alnico Deep Pot Magnet can be up to 220℃ (potentially can be up to 400℃）which allows
alnico magnets keep a stable magnetic force even they heat up .
More Products please find on Alnico shallow pot Magnets
Features
1.Coating option: Zn,Ni,Painting
2.Holding force:15-110N
3.Magnet materials : alnico
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:40days
8.Packing:standard brown carton/wood case for sea shipment
or air shielding shipment
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

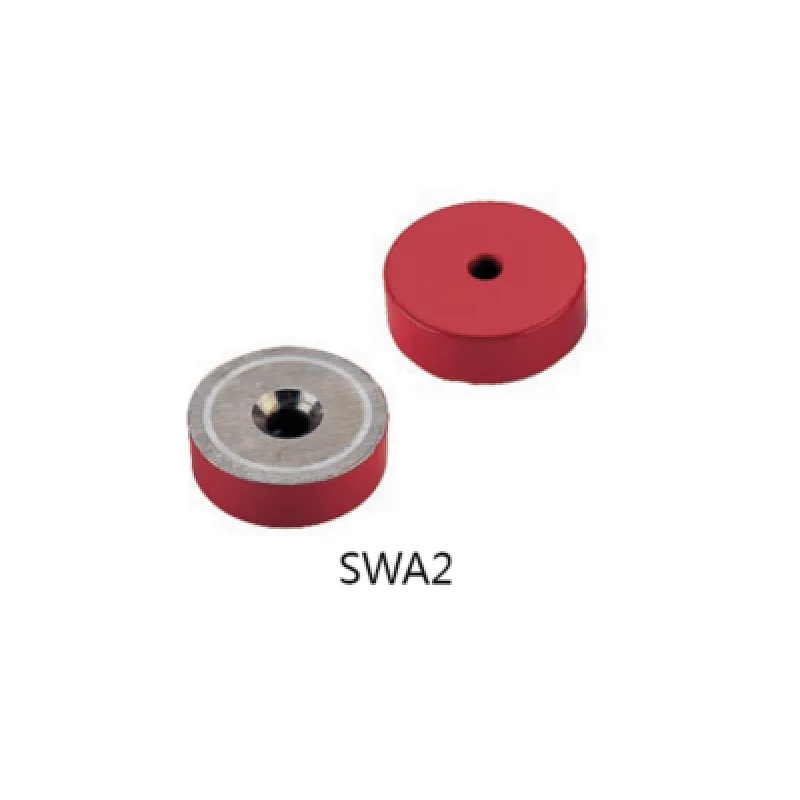

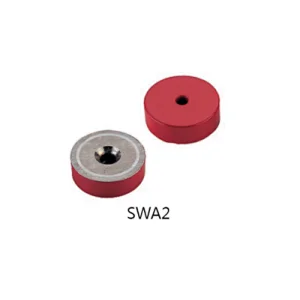

Alnico shallow pot magnet data sheet
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | |||
| D | H | D1 | D2 | |||
| SWA2-16 | 16 | 6 | 3.5 | 6.5 | 9 | 15 |
| SWA2-19 | 19 | 8 | 4.2 | 8 | 18 | 30 |
| SWA2-25 | 25 | 8 | 4.2 | 8 | 30 | 40 |
| SWA2-29 | 29 | 8.5 | 4.8 | 9.7 | 43 | 49 |
| SWA2-38 | 38 | 11.1 | 4.8 | 9.7 | 98 | 110 |
Send Message
